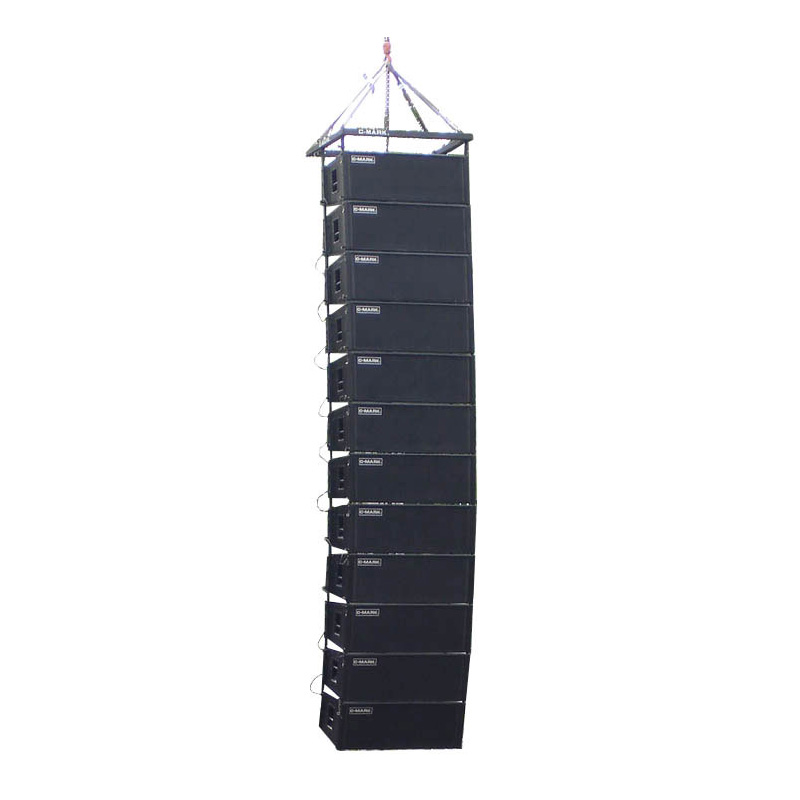

? C-MARK LND32 line array loudspeaker, outcome of state-of-the-art pro audio manufacturing technology:
? Neodymium-magnet lightweight, high-powered, user-friendly installation. smart design, ply wood, of international line array standard.
<p style="margin-top: 0px; margin-bottom: 0px; padding: 0px; font-family: Arial, Verdana, Helvetica, sans-serif; list-style-type: none; color: rgb(68, 68, 68); white-space: normal; line-height: 1.
Components | 2×12″ neodymium- magnet LF driver 1×3″ neodymium-magnet HF driver | |
HF Driver | Item | Hi75TiND×1 |
RMS Power | 150W | |
Max Power | 300W | |
Impedance | 16Ω | |
LF Driver | Item | MF1275AND ×2 |
RMS Power | 650W | |
Max Power | 1300W | |
Impedance | 16Ω | |
Full Range driving | ||
RMS Power | 800W | |
Max Power | 1600W | |
Impedance | 16Ω | |
Frequency Response | 50Hz-18KHz | |
Sensitivity | 108dB (1m/1W) | |
Horizontal Coverage | 100° | |
Vertical | depending on curvature Vertical angle adjustable: 0-9° | |
N.W | 41.5KGS | |
G.W | 145KGS(2PCS per flight case) | |
Dimension(mm) | 1160(L) x 890(W) x 720(H) | |
? C-MARK LND32 line array loudspeaker, outcome of state-of-the-art pro audio manufacturing technology:
? Neodymium-magnet lightweight, high-powered, user-friendly installation. smart design, ply wood, of international line array standard.
? Two driving methods: Full range driving; or driving HF and LF separately.
? Rugged, integral array suspension hardware ensures fast, reliable setups and takedowns. Flexible package choices w/o subwoofer. Angle adjustment between speakers creates equal SPL.
? Tweeter horn specially designed to make parallel wave, horizontal dispersion on a same plane. SPL damps at a rate of 3dB with double distance increased . For line array speaker system with 6 pcs LND32, maximum SPL tested up to 104dB at 100M distance.
LND-D1 Suspension Hardware and Instructions
EASE FOCUS Software
